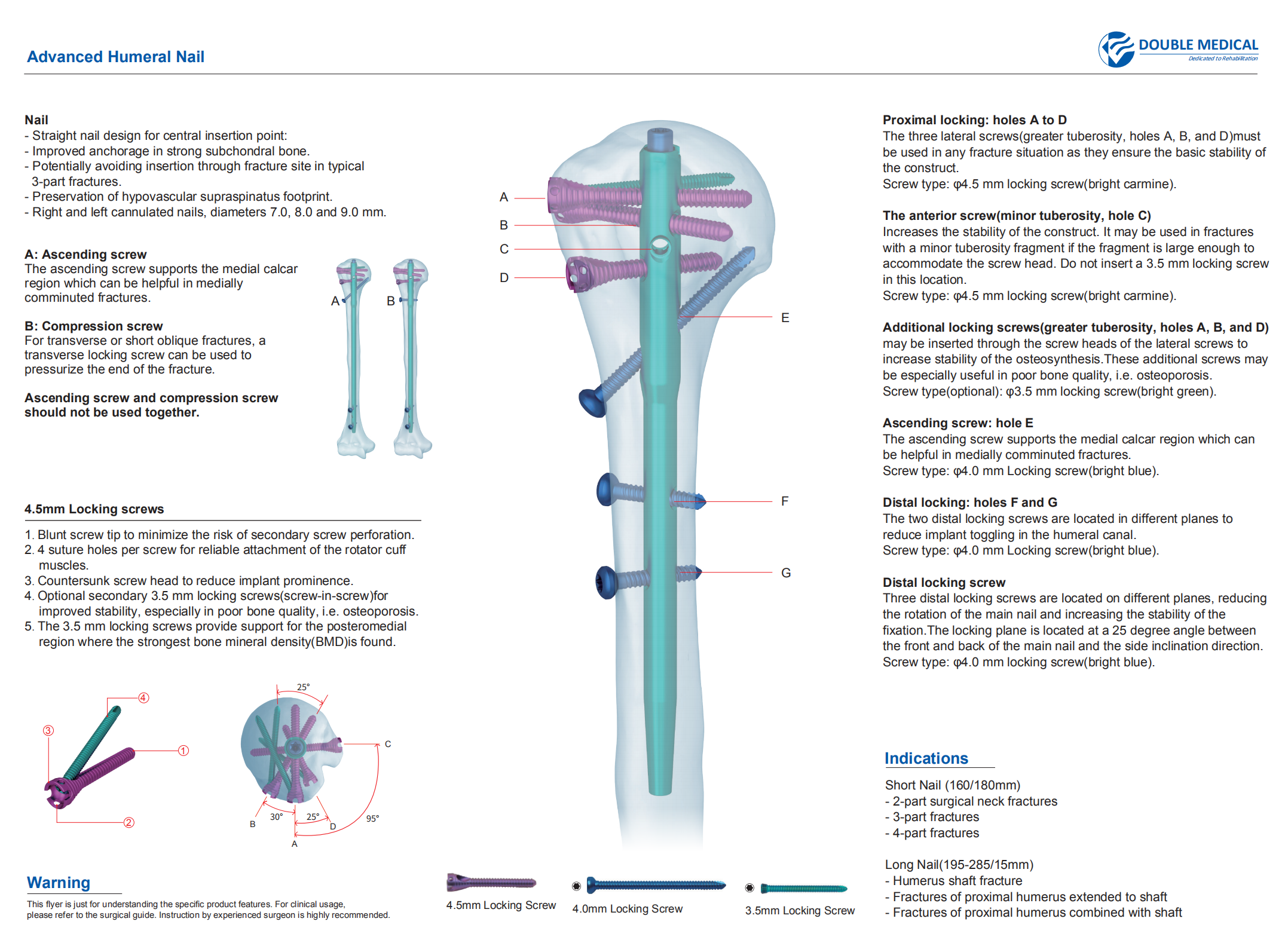

Cechy:

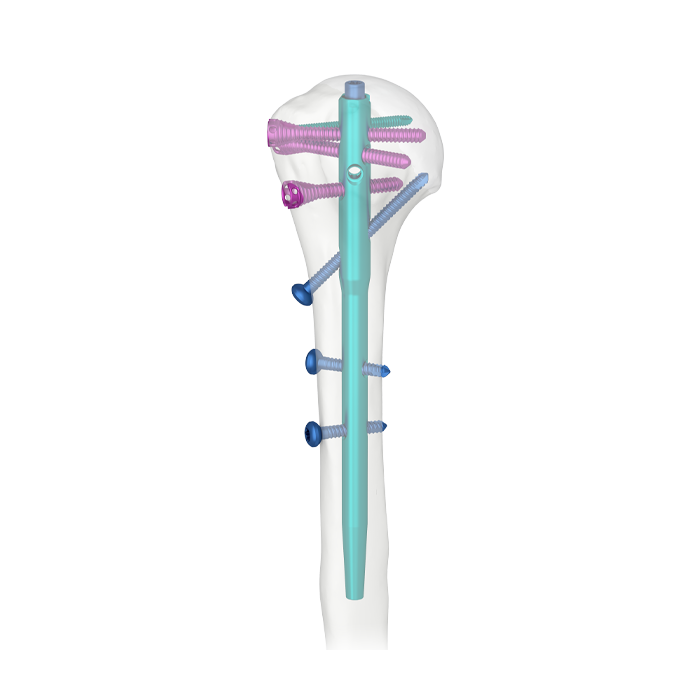

- Straight nail design for central insertion point.
- Improved anchorage in strong subchondral bone.
- Potentially avoiding insertion through fracture site in typical 3-part fractures.
- Preservation of hypovascular supraspinatus footprint.

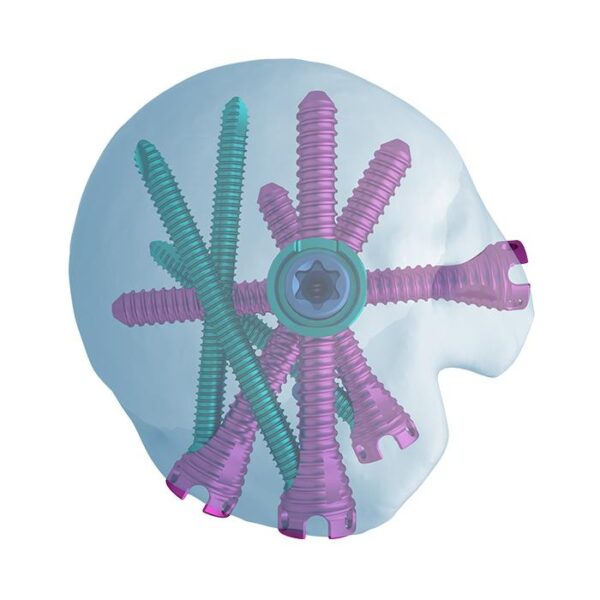

- Proximal locking holes for angular stability and to reduce instances of screw back-out.
- Ascending screw option providing support for the calcar.
- Distal Multiplanar locking provide angular stability.
- The proximal of nail with groove for screw in screw fixation.

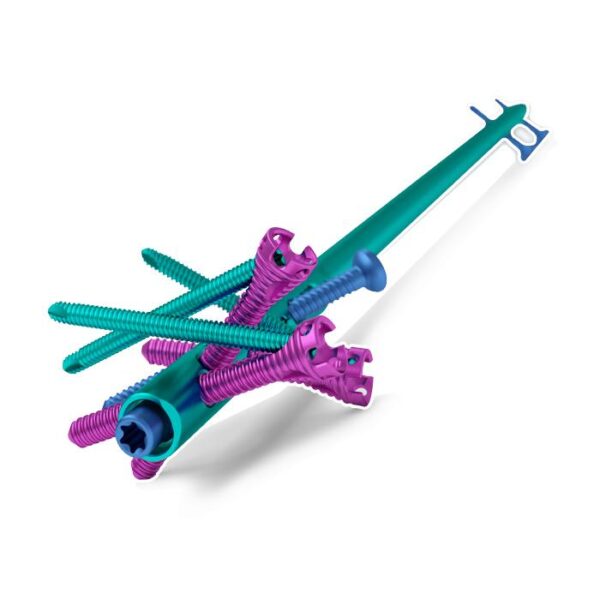

- Provide ascending screw and compression screw for long nail.
Wskazania
Short (160/180mm)
- 2-part surgical neck fractures
- 3-part fractures
- 4-part fractures
Long (195-285/15mm)
- Humerus shaft fracture
- Fractures of proximal humerus extended to shaft
- Fractures of proximal humerus combined with shaft
Śruby:
- 4.5mm MultiLoc Screw
- Śruba blokowana 3,5 mm
- Śruba blokująca 4,0 mm
- End Cap for Advanced Humeral Nail
Instrument Set:
- Advanced Humeral Nail Instrument Set
