Cechy:
- Three distal divergent locking screws, provide effective support/fixation.
- Two proximal angled locking screws, avoid fracture rotation and displacement.
- Special anatomical curvature, ensure the nail is in the optimal position of medullary cavity.
- Distal flat cutting design, avoid insertion difficulties.
- Proximal oblique cutting design, reduce irritation to soft tissues of medial malleolus.
Wskazania:
- Closed and open distal tibial fractures or one-fifth of the distal tibial fractures and the metaphyseal fractures (AO/OTA 43.A1 / A2/A3)
- Distal tibial fractures, simplely involves the ankle joint (AO/OTA 43.C1, C2)
Śruby:
- 3.5mm Cancellous Screw for 7.0mm Distal Tibial Nail
- 3.5mm Cortex Screw for 7.0mm Distal Tibial Nail
- 4.0mm Cancellous Screw for 8.0mm Distal Tibial Nail
- End Cap for Distal Tibial Nail
Zestaw narzędzi:

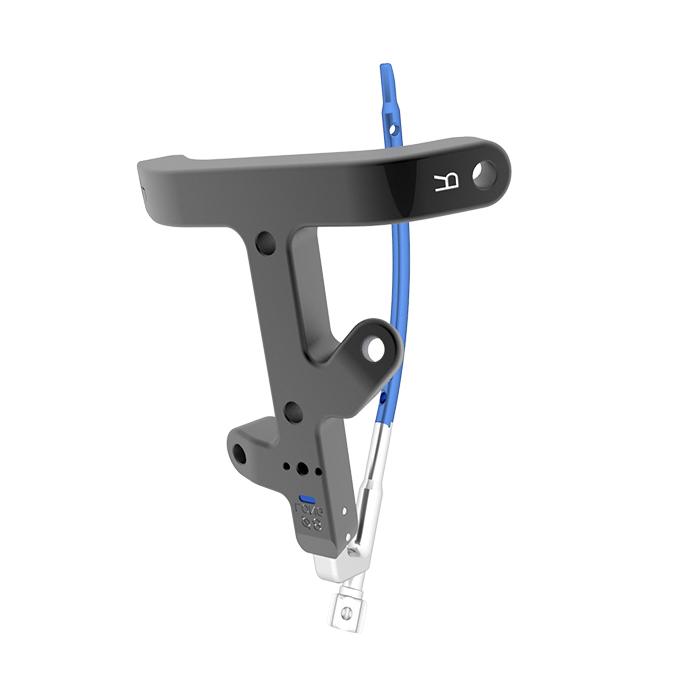

- Distal Tibial Nail II Instrument Set
